| Place of Origin: | United States |
| Brand Name: | X-rite |
| Model Number: | 504 |
| Minimum Order Quantity: | 1 Piece/Pieces |
|---|---|
| Packaging Details: | 1piece/set |
| Delivery Time: | within 5 workdays after payments |
| Payment Terms: | T/T,Western Union,MoneyGram,paypal |
| Supply Ability: | 50000 Piece/Pieces per Month |
| Color: | White | Warranty Time: | 1 Year |
|---|---|---|---|
| Function2: | Overprint | Function: | Grey Scale |
| Package: | 1piece/set | Weight: | About 2kg |
| Test: | Pantone Colors |
For CMYK operations that want a set of traditional tools and the option to add more features as their requirements change.
1.Print special colors and process color
2.It has a full selection of colorimetric
3.Spectral Range 400nm to 700nm

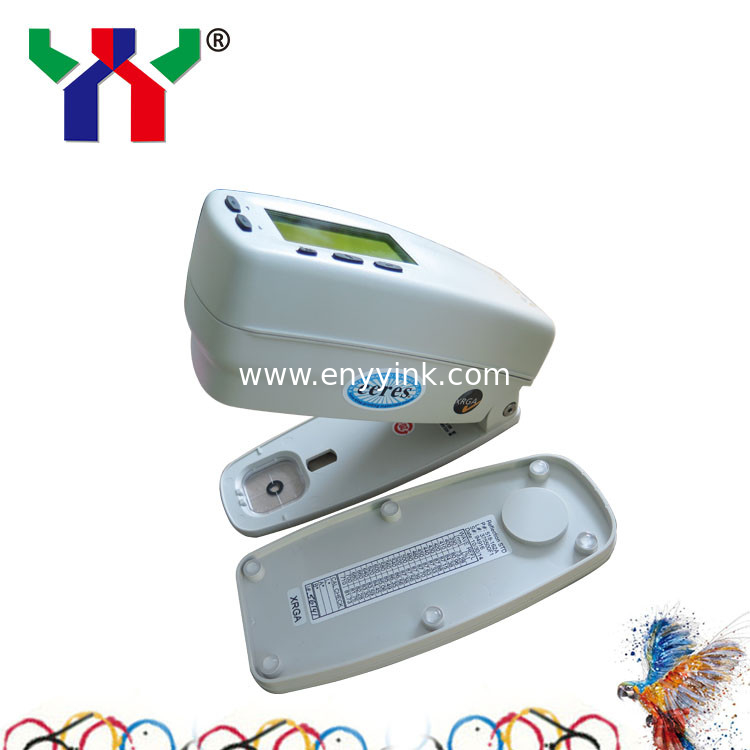

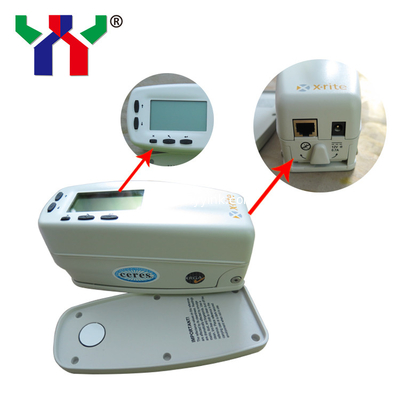

Features of X-rite 504 Spectrometer:
1.Now comes pre-loaded with G7/ISO 12647-2 data sets and the digital PANTONE® FORMULA GUIDE, coated.
2.Evaluate whether your special colors, densities, dot gains and other critical measures meet pre-established targets
3.Get pre-set ink formulas for stored color libraries, or create and download your own using the included ColorMail Express software (for Windows)
4.Establish or verify color management profiles using the color features; supported by many CMS packages
5.Upgrade to add spectral data by using a simple keycode

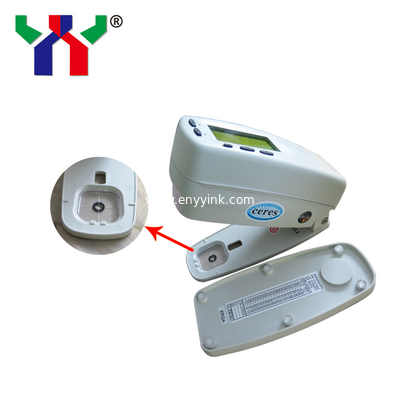

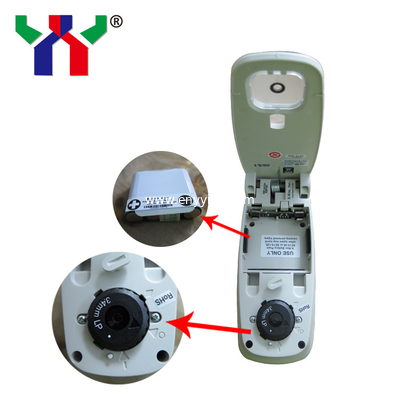

6.Only X-Rite lets you select a measurement aperture—microspot 1.6 x 3.2mm, small 2.0mm, medium 3.4mm or large 6.0mm
Specifications of X-rite 504 Spectrometer:
1.Measurement Geometry
45º/0º per ANSI, DIN & ISO Standards
2.Spot Size at Sample
3.4mm (.13in) standard
2.0mm (.078in) optional
6.0mm (.236in) optional
1.6mmH (.063 in.) x 3.2mmW
3.Micro-Spot (.125 in.)
Light Source
Gas Pressure @ 2856º
Spectral Range
400nm to 700nm
4.Illuminant Types
A, C, D50, D55, D65, D75, F2, F7, F11, F12
5.Standard Observers
2º and 10º
6.Response Types
T, E, I, A, G,Tx, Ax, Ex, Hi-Fi
7.Measurement Range
0.00D–2.5D; 0–160%R
8.Measurement Time
Approx. 1.4 seconds single measurement
Approx. .9 seconds for consecutive measurements in Speed Read mode
9.Warm Up Time
None
10.Repeatability
±0.005D 0.00–2.00D*
±0.010D 2.00–2.50D*
*Polarized Yellow ±0.010D 0.00–1.80D
0.10 DE Max
Micro-Spot ±0.010D 0.0–1.8D
Inter-Instru
