| Place of Origin: | Guangdong, China |
| Brand Name: | TOYOBO |
| Model Number: | Printight KM73GR |
| Minimum Order Quantity: | 1 Box/Boxes |
|---|---|
| Packaging Details: | Quantity: 20 sheets/box |
| Delivery Time: | Withing 3 working days after payment |
| Payment Terms: | T/T,Western Union,MoneyGram,paypal |
| Supply Ability: | 5000 Sheet/Sheets per Week |
| Use: | Letterpress Printing | Material: | Nylon Resin |
|---|---|---|---|
| Style: | Positive | Type: | Resin Plate |
| Size: | A2 | Color: | Transparent |
| Used For: | Letterpress Printing |
TOYOBO Printight Photo-sensitive Nylon Printing Plate
Key Advantages:
1. Washout with water
TOYOBO Pintight printing plate makes customers of this system possible to use ordinary water for washout.
2. Transparent and flexible printing plate
Transparent polyester film as a support material gives excellent dimensional stability and easy process ability to printing machines. Steel base plates are also available.
3. Slip coat
Has slip coat to get good contact between the plate and the negative film. You can use plain negative film.
Properties:
| Spectral Sensitivity | 300 ~ 400nm |
| Thickness Tolerance |
±10μm (Film base) ±15μm (Metal base) |
| Resolving Capability | 150 ~ 200 lines/inch |
| Minimum Dot Image | 0.10mm in diameter (0.004") |
| Minimum Line Image | 0.03mm in width (0.0011") |
Structure of Plate:

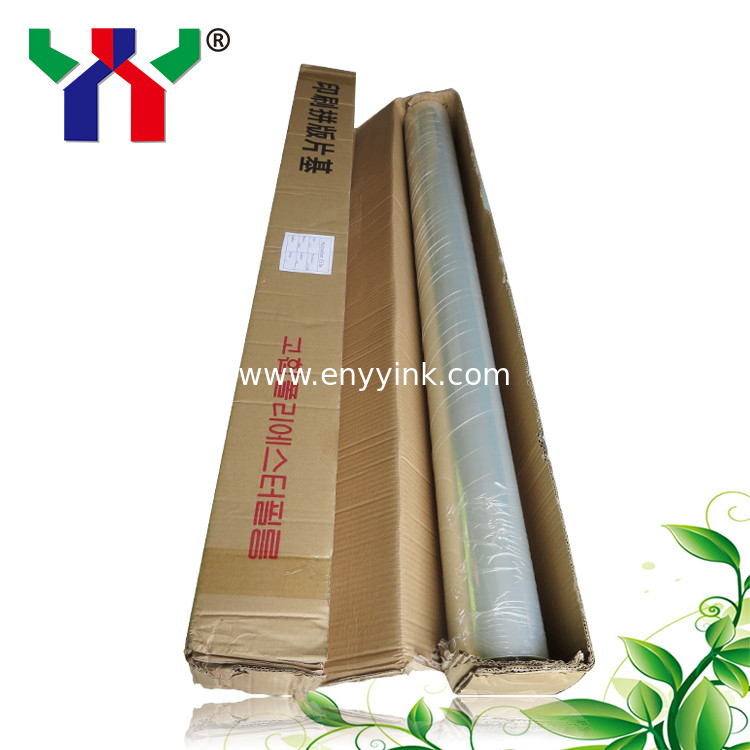

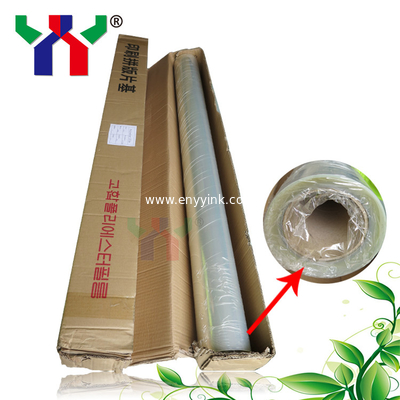

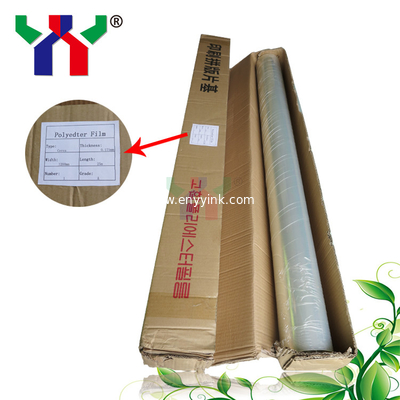

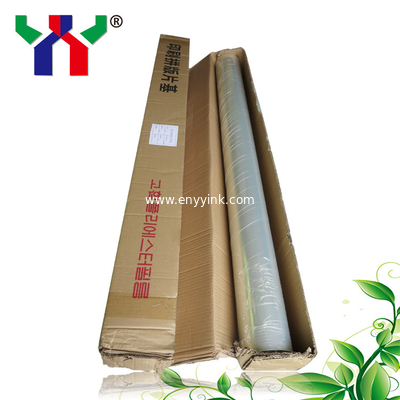

Packaging:
A3 size: 594mm×420mm Quantity: 20 sheets/box
We also have other models:
