| Place of Origin: | Guangdong, China (Mainland) |
| Brand Name: | YY |
| Model Number: | 0.3*1.2 |
| Minimum Order Quantity: | 1 Box/Boxes |
|---|---|
| Packaging Details: | 70cm/pc,50pcs/box |
| Delivery Time: | within 5 workdays after payments |
| Payment Terms: | T/T,Western Union,MoneyGram,paypal |
| Supply Ability: | 1000 Box/Boxes per Week |
| Adhesive Creasing Matrix: | For Die Cutting | Color: | Yellow ,red ,white,green,black,orange |
|---|---|---|---|
| Size: | Varied Size Available | Material: | Fiber And Plastic |
| Feature: | Brute Mighty Bottmom Film |

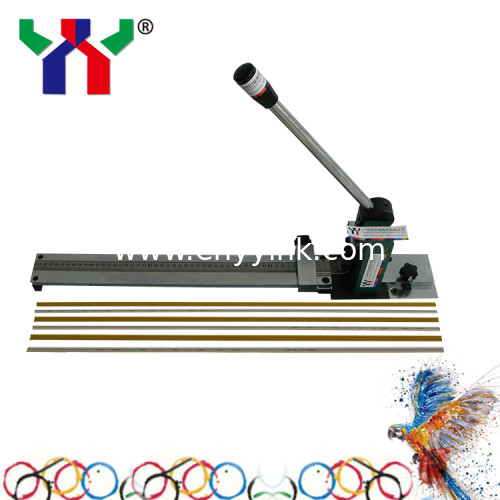

creasing die cutting machine
1. Used to box and carton creasing
2. Various sizes
Hot Sale creasing matrix for die cutting 0.3*1.2
Operation procedure
Features
| paper grams | Sheet thickness | Creasing matrix height | Common sizes | ||||||
| 23.5 | 23.4 | 23.3 | 23.2 | 23.1 | 23 | 23.24 | 22.9 | ||
| 200 | 0.28mm | 0.3×1.0 | 0.4×1.0 | 0.5×1.0 | |||||
| 250 | 0.35mm | 0.3×1.2 | 0.4×1.2 | 0.5×1.2 | 0.5×1.2 | ||||
| 300 | 0.42mm | 0.3×1.3 | 0.4×1.3 | 0.5×1.4 | 0.5×1.4 | ||||
| 350 | 0.50mm | 0.4×1.4 | 0.5×1.5 | 0.6×1.5 | 0.5×1.5 | ||||
| 400 | 0.56mm | 0.5×1.6 | 0.6×1.6 | 0.5×1.6 | 0.8×1.6 | ||||
| 450 | 0.63mm | 0.5×1.7 | 0.6×1.7 | 0.7×1.7 | 0.8×1.7 | ||||
| 500 | 0.70mm | 0.7×1.7 | 0.8×1.7 | 0.8×1.7 | |||||
* the thickness of the cardboard: 0.52mm; the thickness of creasing rules: 0.71mm, according to calculation formula: A=0.52≈0.5(mm); B=0.52 x 1.5 +0.71 = 1.49 ≈1.5(mm),so we should choose the size of 0.5 x 1.5
| orrugated Paper | Thickness of Corrugated Paper After Compression | Height of Creasing Rule | Choice of Creasing Matrix(Thickness of Creasing Rule Is 1.05mm) | Choice of Creasing Matrix(Thickness of Creasing Rule Is 1.42mm) |
| F-Flute | 0.50mm | 23.20mm | 0.5×1.7 | |
| E- Flute | 0.65mm | 23.10mm | 0.7×2.3 | —— |
| E- Flute | 0.75mm | 23.00mm | 0.8×2.5 | —— |
| B- Flute | 0.85mm | 22.90mm | 0.8×2.7 | 0.8×3.2 |
| B- Flute | 0.95mm | 22.80mm | 1.0×3.0 | 1.0×3.5 |
| C- Flute | 1.05mm | 22.70mm | 1.0×3.2 | 1.0×3.5 |
| C- Flute | 1.15mm | 22.60mm | —— |
1.0×4.0 |
